Geospatial User Interfaces for Edge Command and Control

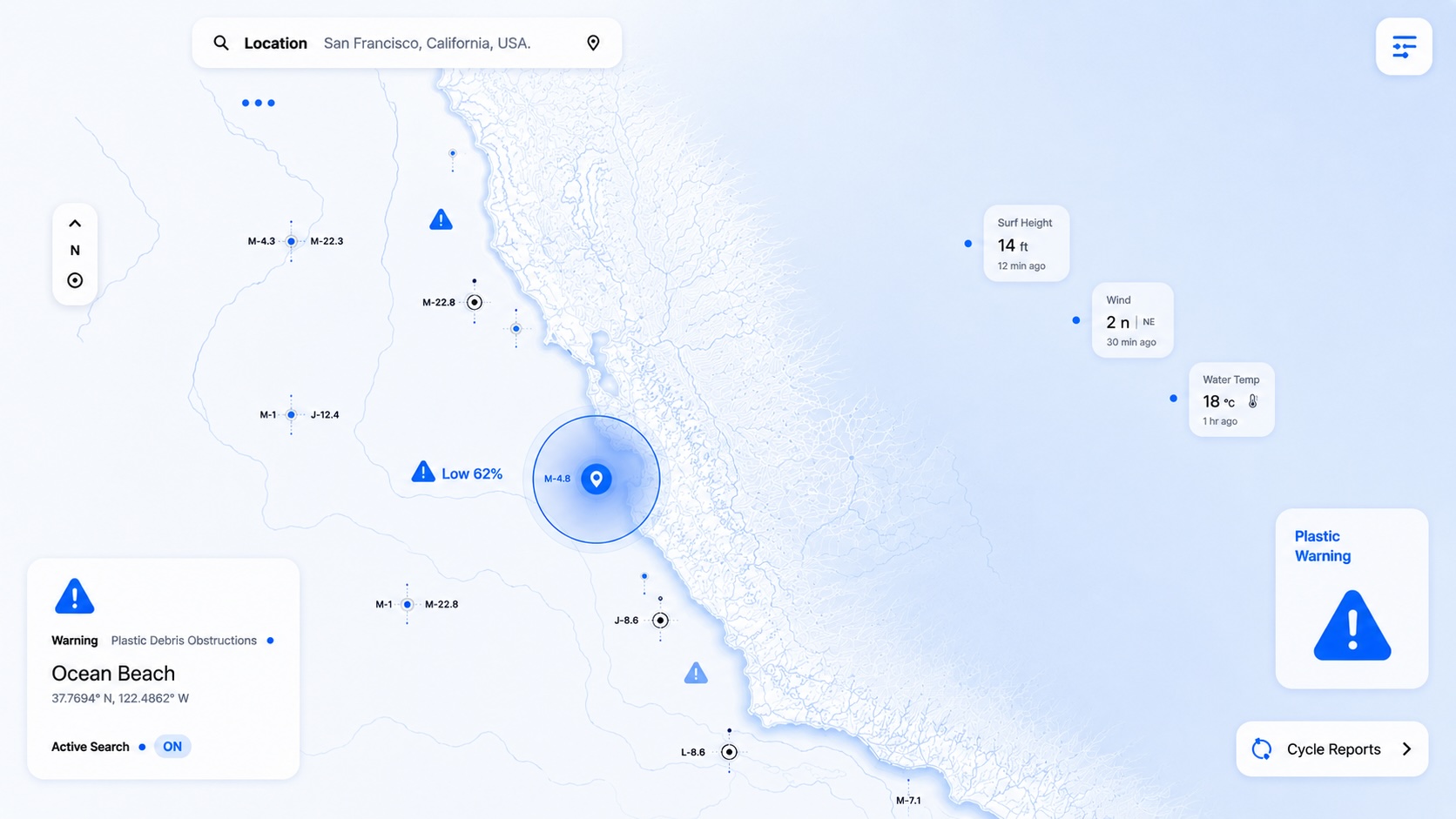

Geospatial user interfaces for autonomous fleets are not map dashboards. They are control-room interfaces for a process spread across space. The process variables are position, intent, mission state, health, autonomy confidence, communication quality, route conformance, hazard proximity, payload state, and operator workload. The assets may be aircraft, ground robots, tractors, marine vessels, underwater vehicles, fixed sensors, radio masts, charging stations, or field operators. The display may be a 3D globe. The operating job is still industrial supervision: help a human see what changed, understand whether it matters, project what happens next, and intervene before the system crosses a safety, economic, or mission boundary.

Most geospatial applications are built for exploration. They let the user pan, zoom, query, layer, filter, and inspect. Command and control has to keep those tools, then add a harder requirement: protect attention when time is short. The interface must separate a harmless data delay from an unsafe loss of command link, an event from an alarm, a map overlay from a safety constraint, and an autonomy suggestion from an operator-authorized command.

For the Lyon Industries open-source fleet-management work, the starting point is not a blank web map. It is the control-room literature: ISA-101 for HMI lifecycle and display philosophy, ISA-18.2 and IEC 62682 for alarm management, EEMUA 191 for alarm-system practice, ISO 11064 and EEMUA 201 for control-center ergonomics, NUREG-0700 for human-system interface review, and the geospatial standards stack from OGC, IHO, ITU, FAA/NASA UTM, ROS 2/DDS, OPC UA, MQTT Sparkplug, MAVLink, and ISO agricultural machinery safety.

Abstract

This paper turns SCADA HMI practice, alarm-management standards, human-factors research, geospatial interoperability standards, and moving-asset use cases into design rules for a globe-centered fleet interface.

The working conclusion is simple: a geospatial C2 interface is a high-performance HMI for a moving, distributed, partially autonomous process. A globe or map is the spatial substrate. The operating model is alarm triage, role-based supervision, verified mission execution, and degraded-mode control at the edge.

SCADA alarm practice transfers well if it is translated carefully. ISA-18.2 and IEC 62682 define alarm systems around lifecycle governance: philosophy, identification, rationalization, detailed design, implementation, operation, maintenance, monitoring, management of change, and audit.^{1International Society of Automation. ISA-18 Series of Standards and ISA InTech articles on ISA-18.2 alarm management lifecycle and updates. https://www.isa.org/standards-and-publications/isa-standards/isa-18-series-of-standards and https://www.isa.org/intech-home/2018/march-april/features/alarm-m...2ANSI Webstore. IEC 62682 Ed. 2.0 b:2022 - Management of alarm systems for the process industries. https://webstore.ansi.org/standards/iec/iec62682ed2022} For fleets, this means every alarm must have a defined cause, consequence, operator action, response time, owner, priority, suppression rule, and evidence record. Notifications that do not require a timely operator response should be events, advisories, prompts, or work items, not alarms.

High-performance HMI practice also transfers. ISA-101 emphasizes an HMI lifecycle, human-centered design, display structures, interaction conventions, training, and continuous improvement.^{3International Society of Automation. ISA-101 Series of Standards and ISA-101.01-2015, Human Machine Interfaces for Process Automation Systems. https://www.isa.org/standards-and-publications/isa-standards/isa-101-standards} EEMUA 201 and ISO 11064 add control-room context: workstation layout, environment, control-system graphics, and human factors.^{4EEMUA. EEMUA Publication 201 - Control rooms: a guide to their specification, design, commissioning and operation. https://www.eemua.org/products/publications/digital/eemua-publication-2015ISO. ISO 11064-1:2000 Ergonomic design of control centres - Part 1 and ISO 11064-4:2013 - Layout and dimensions of workstations. https://www.iso.org/standard/19042.html and https://www.iso.org/standard/54419.html} For geospatial UIs, that means normal operation should be visually quiet. Color, sound, motion, and interruption are scarce resources. Spend them on abnormal states and operator decisions.

The map is where many teams get overconfident. Moving assets create failure modes ordinary dashboards do not have: stale tracks, wrong coordinate reference systems, incorrect altitude reference, dateline and polar behavior, projection distortion, ambiguous symbol priority, occlusion, excessive layers, misleading interpolation, GNSS jamming or spoofing, network partitions, and identity swaps. OGC standards solve part of the data-exchange problem. They do not solve operator cognition. A standards-compliant map can still be unsafe if it hides uncertainty, overloads the operator, or treats every telemetry event as equally urgent.

For connectivity-denied farms and edge autonomy infrastructure, the architecture has to be local-first. The edge node should own the operational picture, mission state, alarm state machine, local map cache, event log, and robot adapters. Cloud sync can help reporting and support, but it cannot be required for field operation. The UI must make link quality, data age, command authority, and autonomy mode explicit at all times.

Research Question And Scope

The working question is:

How should SCADA HMI and alarm-management practice be translated into globe-centered user interfaces for real-time command and control of autonomous fleets at the edge?

The scope covers:

• alarm triage, notification design, event classification, escalation, shelving, suppression, and alarm floods
• psychological implementation: attention, workload, situation awareness, alarm fatigue, trust calibration, automation bias, and out-of-the-loop risk
• UI and UX implementation for a globe-centered geospatial operating picture
• architecture best practices for integrating robots, telemetry, SCADA/OT systems, geospatial layers, and edge services
• use cases from industrial control rooms, maritime ECDIS/AIS, UAS traffic management, military C2 symbology, agricultural robotics, and connectivity-denied field infrastructure
• pitfalls specific to geospatial applications
• design implications for an open-source fleet-management project running on edge infrastructure

This is not a market forecast or a UI mockup. It is the research base for product architecture, design philosophy, and the first engineering gates.

The Thesis

A geospatial fleet UI is a control-room HMI with a map at the center.

That sentence creates three product rules.

First, the interface is organized around operator action, not data availability. If a robot reports 200 telemetry fields, the HMI should not expose 200 equally salient values. It should expose the subset that lets the operator answer: What is normal? What is abnormal? What requires action? What will happen next? What evidence supports that conclusion?

Second, alarm management is a lifecycle, not a UI component. A notification drawer is not an alarm-management system. An alarm-management system includes a philosophy, master alarm database, rationalization workflow, prioritization criteria, state transitions, suppression and shelving rules, audit logs, training, monitoring metrics, and management of change.

Third, geospatial context has to pay rent. A globe can combine weather, terrain, radio coverage, geofences, work zones, routes, regulations, sensor observations, autonomy confidence, and mission plans. Each layer also adds cognitive load. The default view should show the minimum state needed to keep the fleet safe and productive.

Standards Landscape

No single standard covers globe-centered C2 for autonomous agricultural fleets. The relevant body of practice is a stack.

What Counts As An Alarm

The first design decision is the split between an alarm and every other notification.

In ISA-18.2 and IEC 62682 framing, an alarm is not "something interesting happened." It is a condition presented to an operator to support a timely response to an abnormal condition.^{1International Society of Automation. ISA-18 Series of Standards and ISA InTech articles on ISA-18.2 alarm management lifecycle and updates. https://www.isa.org/standards-and-publications/isa-standards/isa-18-series-of-standards and https://www.isa.org/intech-home/2018/march-april/features/alarm-m...2ANSI Webstore. IEC 62682 Ed. 2.0 b:2022 - Management of alarm systems for the process industries. https://webstore.ansi.org/standards/iec/iec62682ed2022} EEMUA 191 describes alarm systems as operator-interface support for warning operators of situations needing attention and helping prevent, control, or mitigate abnormal situations.^{6EEMUA. EEMUA Publication 191 - Alarm systems: a guide to design, management and procurement and Edition 4 release note. https://www.eemua.org/Products/Publications/Digital/EEMUA-Publication-191.aspx and https://www.eemua.org/news/good-practice-for-all-aspects-of-industrial-alarm-systems-%E2%80%93...}

For a fleet-management system, use this rule:

An alarm is an abnormal condition that requires a defined operator action within a defined response time to avoid or reduce a consequence.

Anything that fails that test belongs somewhere else.

This split prevents a predictable failure: teams pour warnings, events, robot logs, AI uncertainty, network faults, and mission notes into one feed. The operator learns that the feed is mostly noise. When a true alarm arrives, it competes with routine telemetry.

Alarm Lifecycle For Fleet C2

ISA-18.2's lifecycle can be translated directly into fleet work.

For an open-source project, the master alarm database does not need to start as an enterprise tool. It can be a versioned YAML/JSON registry with a schema and tests. Alarm definitions should be reviewed like code.

id: fleet.geofence.exit.predicted
class: safety
priority: high
condition: "predicted_path exits active_operating_zone within response_window"
response_time_seconds: 60
operator_action: "pause mission or authorize safe reroute"
consequence: "asset may leave supervised farm operating zone"
suppression:
  allowed_when: "asset.mode in [manual_recovery, maintenance]"
  max_duration_minutes: 15
evidence:
  required: ["asset_position", "position_uncertainty", "active_zone", "predicted_path", "link_state"]

This pattern is dull on purpose. Alarm definitions are safety contracts, not UI decorations.

Alarm Triage In A Geospatial Operating Picture

A globe-centered interface gives the operator two simultaneous views of an alarm: the alarm as a state-machine object and the alarm as a spatial fact. Both matter.

Spatial context earns its place when it shortens diagnosis. If five robots alarm at once and all sit behind one terrain ridge, the root cause may be radio coverage, not five independent robot failures. The UI should cluster alarms by spatial and causal correlation: same gateway, same correction source, same field, same weather cell, same mission, same autonomy software version, same route segment.

Priorities And Notification Channels

Do not begin with colors. Begin with required response.

Notification channels should be tied to alarm class and operator role:

Acknowledgment must not mean "fixed." Use separate states:

Shelving and suppression are different failure controls. Shelving is an operator action and should expire. Suppression is configured logic and should be visible in audit. Hidden alarms are not absent alarms.

Alarm Floods And Bad Actors

Alarm floods are not rare in robot fleets. They happen whenever one infrastructure failure creates many symptoms: GNSS correction loss, mast radio outage, cloud sync failure, map-tile cache failure, fleet-wide software bug, weather threshold crossing, or a shared perception model issue.

EEMUA 191 is widely used for alarm performance practice and provides benchmark thinking around alarm rates, flood behavior, and bad actors.^{6EEMUA. EEMUA Publication 191 - Alarm systems: a guide to design, management and procurement and Edition 4 release note. https://www.eemua.org/Products/Publications/Digital/EEMUA-Publication-191.aspx and https://www.eemua.org/news/good-practice-for-all-aspects-of-industrial-alarm-systems-%E2%80%93...} A commonly cited EEMUA steady-state benchmark is less than about one alarm per 10 minutes per operator, with flood guidance evaluated over 10-minute windows; the exact targets should be adapted in the alarm philosophy for the domain and staffing model.^{7Reising, D.V.C., Downs, J.L., and Bayn, D. "Human Performance Models for Response to Alarm Notifications in the Process Industries: An Industrial Case Study." Proceedings of the Human Factors and Ergonomics Society Annual Meeting, 2004. https://doi.org/10.1177/154193120404801009} For fleets, the point is not the exact number. The point is that the operator has a finite attention budget. An alarm system that demands continuous acknowledgment is no longer a safety layer.

Fleet-specific flood controls:

The alarm system should be able to answer: "What are the top five alarms causing 80 percent of interruptions?" Bad actors belong in engineering work, not in operator muscle memory.

Psychological Implementation

The interface is part of a cognitive system. It shapes attention whether the designer admits it or not.

Endsley's situation-awareness model is still the cleanest baseline: operators need to perceive relevant elements, comprehend their meaning, and project future status.^{8Endsley, M.R. "Toward a Theory of Situation Awareness in Dynamic Systems." Human Factors, 37(1), 1995. https://doi.org/10.1518/001872095779049543} A map UI often handles the first step and fails the last two. It shows where everything is, but not what the state means or what happens next.

Parasuraman and Manzey's review of automation complacency and bias shows that automation changes attention allocation, especially under multitask load.^{9Parasuraman, R. and Manzey, D.H. "Complacency and Bias in Human Use of Automation: An Attentional Integration." Human Factors, 52(3), 2010. https://doi.org/10.1177/0018720810376055} Endsley and Kiris describe the out-of-the-loop problem: when automation keeps humans away from active control, takeover performance can degrade because situation awareness and skills have decayed.^{10Endsley, M.R. and Kiris, E.O. "The Out-of-the-Loop Performance Problem and Level of Control in Automation." Human Factors, 37(2), 1995. https://doi.org/10.1518/001872095779064555} For robot fleets, the product implication is direct: do not design the operator role as "watch green dots until something goes red."

Operators should stay on the loop, not outside it. The UI should create periodic, meaningful supervision:

• review pending autonomy exceptions
• compare planned versus actual coverage
• inspect low-confidence route segments before execution
• validate field boundaries before missions
• approve mission-level decisions, not motor-control details
• run replay drills after incidents

UI And UX Implementation

The UI should use a display hierarchy similar to high-performance HMI practice, adapted to geography.

The common geospatial UI mistake is making pan and zoom the primary navigation model. Control interfaces need deterministic navigation:

• "show active alarms"
• "show affected assets"
• "show assets under this mast"
• "show operating zone violations"
• "show mission drift"
• "show stale tracks"
• "show autonomy degraded"
• "show only things I own"

Visual Grammar

Normal operation should be quiet. Abnormal states should be obvious.

The Globe Problem

A globe is good for strategic context and multi-region fleets. It is often the wrong control surface for local operations. Farms, ports, fields, and construction sites are usually local-coordinate problems. The UI can use a globe as the top-level metaphor, but control actions often need local East-North-Up, UTM, field row, lane, route, or grid coordinates.

Use the globe for:

• fleet-wide distribution
• cross-region assets
• air and maritime context
• strategic layer synthesis
• storytelling, overview, and executive visibility

Use local projected views for:

• precise route editing
• operating-zone boundaries
• row-level agriculture
• collision, clearance, and implement alignment
• measurement and drawing
• offline field work

The interface should make the coordinate frame explicit when precision matters. GeoJSON uses WGS 84 longitude/latitude positions and removed alternate CRS support because it caused interoperability problems.^{11IETF. RFC 7946: The GeoJSON Format. https://www.rfc-editor.org/rfc/rfc7946} OGC API Features Part 1 is similarly grounded in WGS 84 longitude/latitude for core feature access, with additional CRS support in Part 2.^{12Open Geospatial Consortium. OGC API - Features Standard. https://www.ogc.org/publications/standard/ogcapi-features/} Those defaults are fine for exchange. They are not enough for every control computation.

Controls

Commands need constraints and mode awareness.

Notification Copy

Alarm text should state the asset, condition, consequence, and action.

Geospatial Pitfalls

Geospatial applications have their own failure modes.

Use Cases And Lessons

Process Control SCADA

The process industries learned alarm management through incidents, floods, nuisance alarms, and control-room overload. ISA-18.2 and IEC 62682 exist because alarm systems degrade when adding alarms is cheap and removing them requires discipline. Fleet C2 will repeat that failure unless it starts with alarm rationalization.

What transfers:

• define an alarm philosophy early
• build a master alarm database
• prioritize by consequence and response time
• monitor nuisance alarms and bad actors
• treat changes to alarm rules as management of change
• train operators on alarm response, not just UI navigation

Maritime ECDIS, AIS, And S-100

ECDIS is the closest mature analogy to geospatial safety HMI. IMO's ECDIS performance standards define electronic chart display as a safety-navigation system that can display official chart information, position, radar targets, AIS, and other layers, with appropriate alarms or indications for displayed information or equipment malfunction.^{13International Maritime Organization. Resolution MSC.232(82): Revised Performance Standards for Electronic Chart Display and Information Systems (ECDIS). https://wwwcdn.imo.org/localresources/en/KnowledgeCentre/IndexofIMOResolutions/MSCResolutions/MSC.232%2882%29.pdf} IHO S-100 provides the hydrographic data framework for newer digital marine products and machine-readable catalogs.^{14International Hydrographic Organization. S-100 Universal Hydrographic Data Model and S-100 based product specifications. https://iho.int/en/s-100-universal-hydrographic-data-model and https://iho.int/en/s-100-based-product-specifications} ITU-R M.1371 defines AIS technical characteristics for maritime mobile use.^{15International Telecommunication Union. Recommendation ITU-R M.1371 - Technical characteristics for VHF automatic identification system using time division multiple access in the maritime mobile service. https://www.itu.int/rec/R-REC-M.1371}

What transfers:

• official data provenance is part of the safety case
• layers must be curated for task and mode
• alarms and indications should be tied to navigation risk
• backup arrangements and degraded modes are part of the system
• symbols, colors, and presentation standards reduce ambiguity

UAS Traffic Management

FAA describes UTM as a collaborative ecosystem for low-altitude unmanned aircraft operations, using distributed, highly automated systems and APIs rather than voice control for most coordination.^{16Federal Aviation Administration. Unmanned Aircraft System Traffic Management (UTM). Last updated May 2, 2025. https://www.faa.gov/uas/advancedoperations/trafficmanagement} NASA's UTM project researched low-altitude BVLOS access through demonstrations with FAA, industry, and academia.^{17NASA. UAS Traffic Management (UTM) Project. Page last updated May 15, 2025. https://www.nasa.gov/utm} ASTM F3411 Remote ID defines broadcast and network identification approaches for UAS and explicitly includes network-degraded and network-denied environments in scope.^{18ASTM International. ASTM F3411-22 Standard Specification for Remote ID and Tracking. https://store.astm.org/f3411-22.html}

What transfers:

• federated systems need shared APIs and governance
• operators remain responsible for safe operations within constraints
• identification, deconfliction, and intent sharing are separate but related services
• network denial must be assumed, not treated as an exception

Military C2 Symbology

MIL-STD-2525 establishes rules and requirements for developing and displaying joint military symbology in C2 systems.^{19Defense Logistics Agency ASSIST QuickSearch. MIL-STD-2525 - Joint Military Symbology. https://quicksearch.dla.mil/qsDocDetails.aspx?identnumber=114934} The lesson is not to copy military symbols into farm software. The lesson is that C2 systems need a common visual language for identity, affiliation, status, unit/type, activity, modifiers, and control measures. A fleet UI should define its own equivalent grammar.

For agricultural and civilian robotics, the symbol grammar might encode:

• asset domain: air, ground, surface water, underwater, fixed infrastructure
• autonomy mode: manual, assisted, supervised autonomy, autonomous, degraded, safe stop
• mission type: survey, spray, weed, haul, inspect, patrol, recover
• authority: local operator, remote operator, autonomous controller, emergency stop
• confidence: position, perception, route, command link
• restriction: no-go, caution, work zone, regulatory boundary

Agricultural Robot Fleets And Edge Farms

The prior Lyon Industries agriculture research argued that the farm is becoming a control system before it becomes a robot fleet. The low-cost field autonomy white paper proposed a field control mast and robot backpack architecture: local RTK, radios, edge compute, local web UI, optional cloud sync, and modular adapters.^{20Lyon Industries. Low-Cost Field Autonomy Infrastructure. Internal white paper in this workspace: /content/white-papers/low-cost-field-autonomy/index.md.} This paper extends that premise into the operator interface.

For farms, the field is the control room:

• operating zones are safety objects
• rows, headlands, access lanes, ponds, people, animals, public roads, ditches, and weather are control constraints
• RTK correction, radio coverage, battery logistics, implement state, chemical boundaries, and task records are first-class layers
• the system keeps working when the cloud disappears

ISO 18497 is directly relevant because autonomous agricultural machinery safety includes design principles, autonomous operating zones, residual risk information, and verification/validation principles.^{21ISO. ISO 18497-1:2024, ISO 18497-3:2024, and ISO 18497-4:2024 - Agricultural machinery and tractors - Safety of partially automated, semi-autonomous and autonomous machinery. https://www.iso.org/standard/82684.html, https://www.iso.org/standard/82687.html, and https://www.iso.org/standard/82688.html} ISO 11783/ISOBUS is relevant because tractor-implement communication is a core part of agricultural control.^{22ISO. ISO 11783 - Tractors and machinery for agriculture and forestry - Serial control and communications data network. https://www.iso.org/standard/57556.html}

Architecture Best Practices

The architecture should separate five responsibilities:

Reference Edge Stack

DDS fits real-time and embedded robot systems because it is a publish/subscribe standard with QoS controls for reliability, bandwidth, deadlines, and resource limits.^{23Object Management Group. Data Distribution Service (DDS). https://www.omg.org/omg-dds-portal/index.htm} ROS 2 exposes those QoS choices to robotics developers, including profiles for lossy wireless sensor data and reliable communication where needed.^{24Open Robotics. ROS 2 Documentation - Quality of Service settings. https://docs.ros.org/en/rolling/Concepts/Intermediate/About-Quality-of-Service-Settings.html} MAVLink fits constrained vehicle telemetry and common drone/rover integration; it is binary and designed for bandwidth-constrained links.^{25MAVLink. Protocol Overview. https://mavlink.io/en/about/overview.html} OPC UA and MQTT Sparkplug fit the SCADA/IIoT boundary, where semantics, alarms, conditions, session state, and enterprise integration matter.^{26OPC Foundation. OPC Unified Architecture Specification. https://opcfoundation.org/developer-tools/specifications-unified-architecture27Eclipse Foundation. The Sparkplug Specification. https://sparkplug.eclipse.org/specification}

Local Authority

Connectivity-denied operations require clear authority rules.

NIST SP 800-82r3 is the right security reference here because it frames OT systems around physical-world interaction and emphasizes security while preserving performance, reliability, and safety requirements.^{28NIST. SP 800-82 Rev. 3, Guide to Operational Technology (OT) Security. Published September 2023. https://csrc.nist.gov/pubs/sp/800/82/r3/final} A fleet-management UI should not let cloud convenience compromise local safety behavior.

Data Model

The project needs typed, explicit domain objects:

The data model must distinguish measured, estimated, predicted, commanded, and planned state. A UI that draws all five the same way teaches the operator the wrong mental model.

Implementation Recommendations For The Open-Source Project

1. Build An HMI Philosophy First

Create a short hmi-philosophy.md before building the application shell. It should define:

• operator roles
• display hierarchy
• normal-state visual grammar
• color and motion rules
• symbol grammar
• alarm interaction rules
• map layer defaults
• offline/degraded behavior
• accessibility requirements
• review and testing process

2. Build An Alarm Registry

Do not hard-code alarms directly in UI components. Use a registry with schema validation and tests.

Minimum fields:

• unique id
• class
• priority
• condition
• consequence
• operator action
• response time
• required evidence
• suppression rules
• shelving rules
• owner role
• test cases

3. Make Staleness And Uncertainty First-Class

Every position, layer, mission state, and alarm should carry age and source. The UI should show stale state even when it is inconvenient. "Unknown" is safer than a crisp green marker from stale telemetry.

4. Build Replay Early

Replay is field evidence. It supports debugging, training, incident review, alarm rationalization, and trust. The event log should allow replay of:

• map layers
• track samples
• alarm state transitions
• operator commands
• robot state
• link and edge infrastructure state

5. Use Simulation As A Design Tool

OGC CDB and related simulation data ideas matter because fleet C2 should be tested in synthetic environments before field deployment.^{29Open Geospatial Consortium. CDB Standard - Synthetic Environment Data Model and Structure. https://www.ogc.org/publications/standard/cdb/} Even if the project does not implement CDB, it should support replay/simulation inputs that exercise the UI under alarm floods, stale tracks, bad coordinates, link failures, and autonomy degradation.

6. Prefer Local Web UI, But Respect Control Boundaries

A local web UI served from the edge mast is a good operator surface. It is not the safety controller. Low-level safety belongs onboard the robot or certified controller. The UI can authorize, supervise, and record; it should not pretend a browser event loop is a safety-rated control path.

7. Design For One Operator Supervising Multiple Assets

The UI must scale by exception, not by equal attention. The operator cannot watch every robot continuously. The system should summarize:

• assets needing action
• assets in degraded mode
• mission progress versus plan
• coverage gaps
• energy risk
• link risk
• unresolved alarms
• upcoming decisions

8. Make Degraded Mode Visible

Degraded mode is a first-class state, not a footnote.

Verification Checklist

Use this checklist before field trials.

Pitfalls To Avoid

Product Direction

The open-source project should ship as a local-first fleet HMI, not a generic map dashboard.

Initial product modules:

The first hard gate is evidence-rich pause and recovery. If the operator cannot quickly pause a robot, understand why it stopped, see what it will do next, and recover safely without cloud access, the rest of the C2 interface is premature.

Conclusion

Geospatial fleet interfaces need SCADA discipline before they need map polish. The globe is useful, but the control problem is alarm triage, situation awareness, and verified action under degraded conditions.

The standards agree on the mechanism. ISA-101 gives the HMI a lifecycle and philosophy. ISA-18.2 and IEC 62682 put alarms under lifecycle management. EEMUA 191 and EEMUA 201 force attention back to workload, control-room design, and alarm performance. NUREG-0700 and human-factors research ask whether the display supports perception, comprehension, projection, and takeover. OGC, IHO, FAA/NASA UTM, DDS, ROS 2, OPC UA, Sparkplug, MAVLink, and ISO agricultural standards provide interoperability pieces. None of them remove the need for a coherent operator model.

For connectivity-denied farms and edge robot fleets, the design rule is simple: local truth first, cloud sync second, alarm discipline always. Build the fleet-management system as a control room that happens to live on a field mast and render a globe.

References

Footnotes

1. International Society of Automation. ISA-18 Series of Standards and ISA InTech articles on ISA-18.2 alarm management lifecycle and updates. https://www.isa.org/standards-and-publications/isa-standards/isa-18-series-of-standards and https://www.isa.org/intech-home/2018/march-april/features/alarm-management-life-cycle ↩ ↩²

2. ANSI Webstore. IEC 62682 Ed. 2.0 b:2022 - Management of alarm systems for the process industries. https://webstore.ansi.org/standards/iec/iec62682ed2022 ↩ ↩²

3. International Society of Automation. ISA-101 Series of Standards and ISA-101.01-2015, Human Machine Interfaces for Process Automation Systems. https://www.isa.org/standards-and-publications/isa-standards/isa-101-standards ↩

4. EEMUA. EEMUA Publication 201 - Control rooms: a guide to their specification, design, commissioning and operation. https://www.eemua.org/products/publications/digital/eemua-publication-201 ↩

5. ISO. ISO 11064-1:2000 Ergonomic design of control centres - Part 1 and ISO 11064-4:2013 - Layout and dimensions of workstations. https://www.iso.org/standard/19042.html and https://www.iso.org/standard/54419.html ↩

6. EEMUA. EEMUA Publication 191 - Alarm systems: a guide to design, management and procurement and Edition 4 release note. https://www.eemua.org/Products/Publications/Digital/EEMUA-Publication-191.aspx and https://www.eemua.org/news/good-practice-for-all-aspects-of-industrial-alarm-systems-%E2%80%93-new-edition-of-eemua-191-released ↩ ↩²

7. Reising, D.V.C., Downs, J.L., and Bayn, D. "Human Performance Models for Response to Alarm Notifications in the Process Industries: An Industrial Case Study." Proceedings of the Human Factors and Ergonomics Society Annual Meeting, 2004. https://doi.org/10.1177/154193120404801009 ↩

8. Endsley, M.R. "Toward a Theory of Situation Awareness in Dynamic Systems." Human Factors, 37(1), 1995. https://doi.org/10.1518/001872095779049543 ↩

9. Parasuraman, R. and Manzey, D.H. "Complacency and Bias in Human Use of Automation: An Attentional Integration." Human Factors, 52(3), 2010. https://doi.org/10.1177/0018720810376055 ↩

10. Endsley, M.R. and Kiris, E.O. "The Out-of-the-Loop Performance Problem and Level of Control in Automation." Human Factors, 37(2), 1995. https://doi.org/10.1518/001872095779064555 ↩

11. IETF. RFC 7946: The GeoJSON Format. https://www.rfc-editor.org/rfc/rfc7946 ↩

12. Open Geospatial Consortium. OGC API - Features Standard. https://www.ogc.org/publications/standard/ogcapi-features/ ↩

13. International Maritime Organization. Resolution MSC.232(82): Revised Performance Standards for Electronic Chart Display and Information Systems (ECDIS). https://wwwcdn.imo.org/localresources/en/KnowledgeCentre/IndexofIMOResolutions/MSCResolutions/MSC.232%2882%29.pdf ↩

14. International Hydrographic Organization. S-100 Universal Hydrographic Data Model and S-100 based product specifications. https://iho.int/en/s-100-universal-hydrographic-data-model and https://iho.int/en/s-100-based-product-specifications ↩

15. International Telecommunication Union. Recommendation ITU-R M.1371 - Technical characteristics for VHF automatic identification system using time division multiple access in the maritime mobile service. https://www.itu.int/rec/R-REC-M.1371 ↩

16. Federal Aviation Administration. Unmanned Aircraft System Traffic Management (UTM). Last updated May 2, 2025. https://www.faa.gov/uas/advanced_operations/traffic_management ↩

17. NASA. UAS Traffic Management (UTM) Project. Page last updated May 15, 2025. https://www.nasa.gov/utm ↩

18. ASTM International. ASTM F3411-22 Standard Specification for Remote ID and Tracking. https://store.astm.org/f3411-22.html ↩

19. Defense Logistics Agency ASSIST QuickSearch. MIL-STD-2525 - Joint Military Symbology. https://quicksearch.dla.mil/qsDocDetails.aspx?ident_number=114934 ↩

20. Lyon Industries. Low-Cost Field Autonomy Infrastructure. Internal white paper in this workspace: /content/white-papers/low-cost-field-autonomy/index.md. ↩

21. ISO. ISO 18497-1:2024, ISO 18497-3:2024, and ISO 18497-4:2024 - Agricultural machinery and tractors - Safety of partially automated, semi-autonomous and autonomous machinery. https://www.iso.org/standard/82684.html, https://www.iso.org/standard/82687.html, and https://www.iso.org/standard/82688.html ↩

22. ISO. ISO 11783 - Tractors and machinery for agriculture and forestry - Serial control and communications data network. https://www.iso.org/standard/57556.html ↩

23. Object Management Group. Data Distribution Service (DDS). https://www.omg.org/omg-dds-portal/index.htm ↩

24. Open Robotics. ROS 2 Documentation - Quality of Service settings. https://docs.ros.org/en/rolling/Concepts/Intermediate/About-Quality-of-Service-Settings.html ↩

25. MAVLink. Protocol Overview. https://mavlink.io/en/about/overview.html ↩

26. OPC Foundation. OPC Unified Architecture Specification. https://opcfoundation.org/developer-tools/specifications-unified-architecture ↩

27. Eclipse Foundation. The Sparkplug Specification. https://sparkplug.eclipse.org/specification ↩

28. NIST. SP 800-82 Rev. 3, Guide to Operational Technology (OT) Security. Published September 2023. https://csrc.nist.gov/pubs/sp/800/82/r3/final ↩

29. Open Geospatial Consortium. CDB Standard - Synthetic Environment Data Model and Structure. https://www.ogc.org/publications/standard/cdb/ ↩
